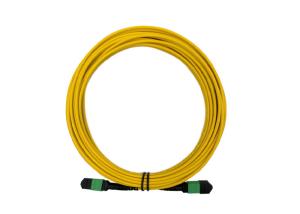

12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female
MTP patch cord are designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings.Our trunk cables are 100% factory tested and can meet your special requirements.All the MTP patch cord connector compliance with GR-1435 Core Compliant.
MTP connector brand : USCONEC

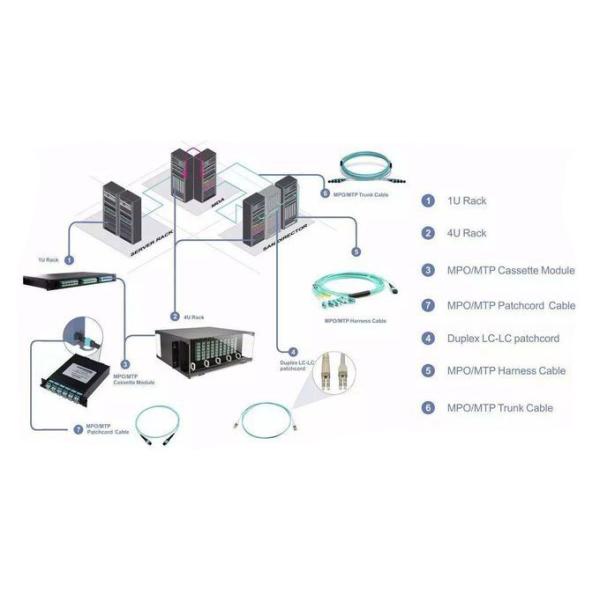

Application:
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
8. Premise installations.
9. Wide Area Networks(WANs)
Connector Performance :
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core |
| Polish | PC, APC |
| Housing Color | Standard (green), Elite (Yellow) | Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
Fiber Cable Perfomance :
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores |
| Cable Diameter | 3.0mm 5.5mm or customized |
| Jacket Color | Yeloow, Orange, Aqua, Purple |
| Jacket Material | OFNR, OFNP, PVC, LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -20 to 70 ℃ |
| Storage Temperature | -40 to 75℃ |

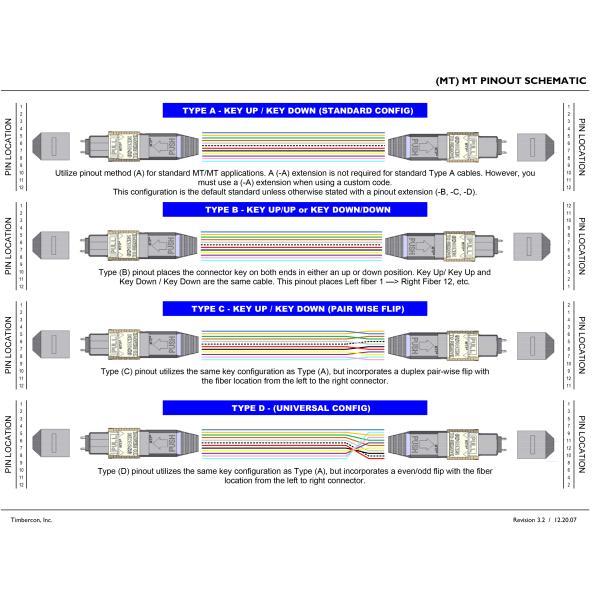

Scheme:A / B / C / D
Our advantage :
1: We are a factory with more than 200 employees and short delivery times.
2: The product has passed strict testing and the quality is guaranteed.
3: South Korea imports chips, work is more stable;
4: 100% support after-sales service, if there is a problem in the product use process, we can replace it for you for free.
